Module |
0.15 |
|||
|
Rated torque |
0.5 kg.cm max |
|||
|
Miax noncntory tolerance torque |
1.0 kg,cm mas |
|||
|
Reduction ratio |
1/10 |
1/20 1/30 |
1/35、1/67 1/85、1/100 |
1/118、1/150 1/250、1/300 1/360 |
|
Nunber of gear stages |
2 |
3 |
4 |
5 |
|

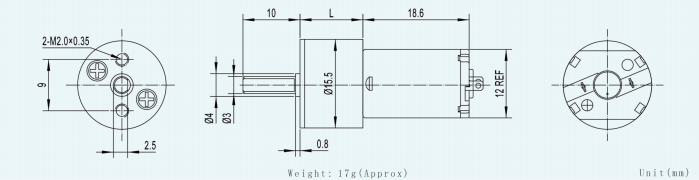

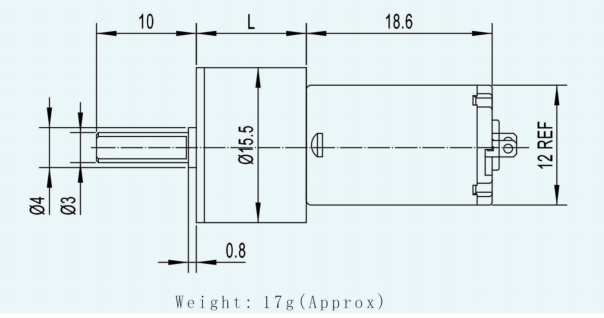

L(mm) |
11.0 |
|||
|
Reduction ratio |
10 |
20 |
30 |
35 |
67 |
85 |
18 |
150 |
250 |
361 |
|
|
6.0V |
No-load spoed(rrm) |
1100 |
550 |
30 |
310 |
170 |
130 |
95 |
75 |
45 |
30 |
|
|
Rated speed(rm) |
900 |
450 |
30 |
260 |
140 |
105 |
80 |
60 |
38 |
28 |
|
|
RaTed torque(kg.cm) |
0.03 |
0.06 |
0.1 |
0.1 |
0.2 |
0.25 |
0.35 |
0.45 |
0.5 |
0.5 |
|
12.0V |
No-1oad speed(rpn) |
1200 |
610 |
410 |
350 |
190 |
140 |
105 |
85 |
50 |
35 |
|
|
Rated speed(rpm) |
975 |
485 |
3240 |
280 |
150 |
110 |
85 |
65 |
40 |
30 |
|
|
Rnted torque(kg.cm) |
0.03 |
0.05 |
0.1 |
0.12 |
0.2 |
0.25 |
1.6 |
0.45 |
(0.5 |
0.5 |
Motor Technica lata
|
Motor model |
Rated voltage |
No-load |
R a t e d |
Stall |
|||||
|
Speed |
Crrent |
Speed |
Torque |
Current |
Rwer |
Torgue |
Current |
||
|
VDC |
r/min |
mA |
r/min |
g.cm |
mA |
W |
B.cm |
A |
|
|

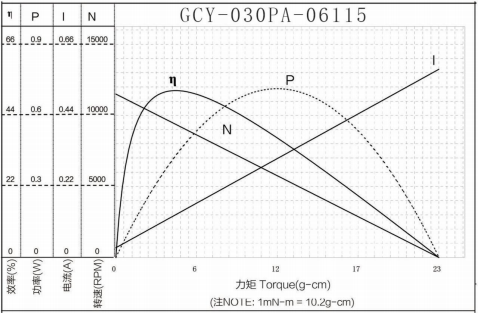

GCY-030PA-06115 |
6.0 |
11500 |
35 |
9000 |
5.0 |
140 |
0.45 |
23 |
0.60 |
|

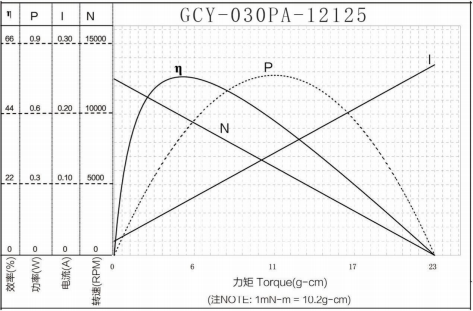

GCY-030PA-12125 |
12.0 |
12500 |
20 |
9800 |
5.0 |
75 |
0.50 |
23 |
0.27 |
