Module |
0.15 |
|||
|
Rnted torque |
0.5 kg.cn nax |
|||
|
Max nonentary tolerance torque |
1.0 kg.cm nax |
|||
|
Redaction ratio |
1/10 |
1/20、1/30 1/50、1/63 1/100 |
1/110、1/150 1/210、1/250 1/298、1/380 |
1/700 1/1000 |
|
Number of gear stages |
2 |
4 |
5 |
7 |
|
L(m) |
9.0 |
12.5 |
||
Gear Motor Techbical Data|
Reduction ratio |
10 |
30 |
50 |
100 |
150 |
210 |
250 |
298 |
380 |
1000 |
|
|
6.0V |
Mo-loal speed(rm) |
1200 |
4L0 |
245 |
120 |
82 |
60 |
50 |
42 |
33 |
12 |
|
|
Rnted sped(rxm) |
1070 |
355 |
210 |
105 |
70 |
50 |
42 |
3.6 |
28 |
10 |
|
|
Rated torque(kg.cn) |
0.024 |
0.06 |
0.1 |
0.2 |
62.25 |
0.35 |
0.4 |
0.45 |
0.5 |
0.5 |
|
12.0V |
No-loed speed(rm |
1200 |
410 |
245 |
120 |
82 |
0 |
50 |
42 |
33 |
12 |
|
|
Fated speed(rpm) |
1040 |
345 |
205 |
102 |
68 |
50 |
40 |
35 |
27 |
10 |
|
|
Rated torxue(kg.cm) |
0.024 |
0.06 |
0.1 |
0.2 |
0.25 |
0.35 |
0.4 |
0.45 |
0.5 |
1.0 |
|
Motor model |
Rated voltage |
No-load |
Rated |
Stall |
||||||
|
|
|
Speed |
Crrent |
Speed |
forque |
Cirrent |
Rwer |
Torque |
Current |
|
|
|
VDC |
r/min |
mA |
T/min |
g.cm |
mA |
W |
g.Cm |
A |
|
|

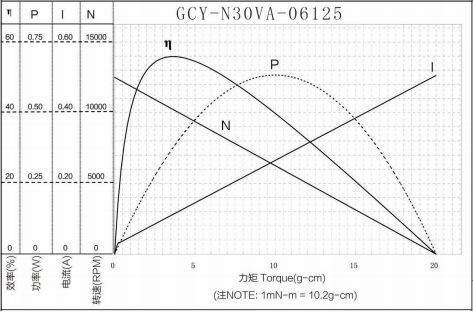

GCY-N30VA-06125 |
6.0 |
12500 |
25 |
10600 |
3.0 |
100 |
0.33 |
20 |
0.50 |
|
|

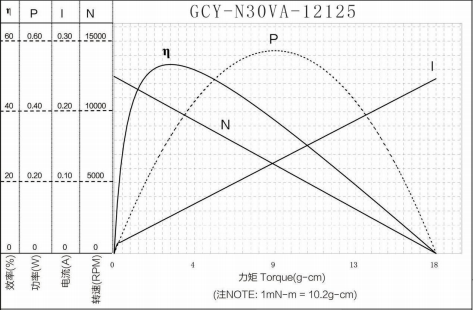

6CY-N30VA-12125 |
12.0 |
12500 |
12 |
10400 |
3.0 |
50 |
0.32 |
18 |
0.25 |
|
