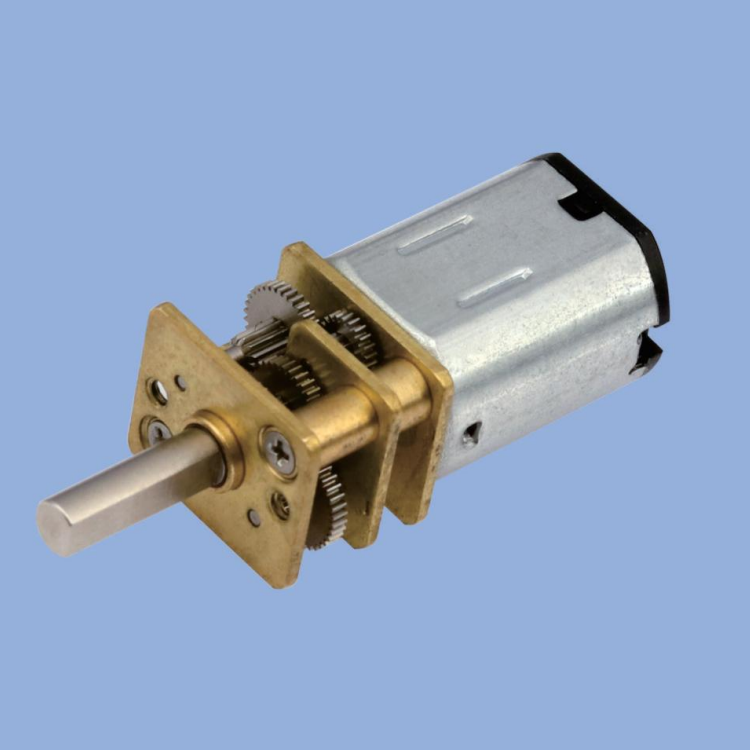

GM12A-N20VA    DC Spur Gear Motor

GM12A-N20VA        DC Spur Gear Motor

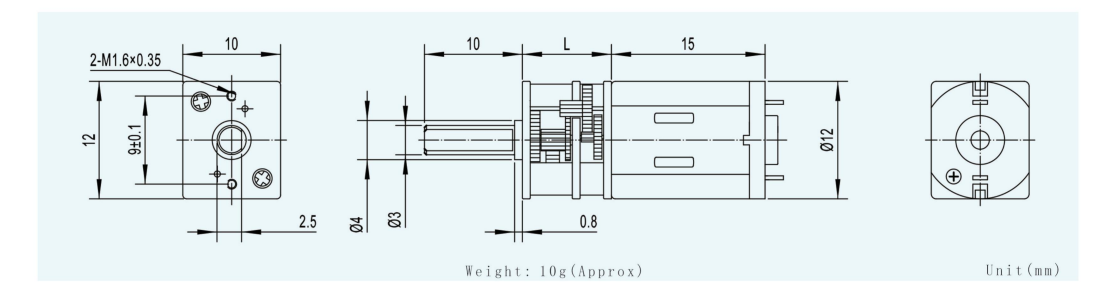

Module 0.15 Rated torque 0.5Kg.cm  max Max momentary tolerance torque 1.0Kg.cm  max Reduction ratio 1/10 1/20,1/30,1/50,1/63,1/100 1/110,1/150,1/210,1/250,1/298,1/380 1/700,1/1000 Gearbox Reduction Stage 2 4 5 7 Gearbox Length L(mm) 9.0 12.5
Gear Motor Technical Parameters
Reduction ratio 10 30 50 100 150 210 250 298 380 1000 2.4V No-load Speed(rpm) 1450 470 285 145 96 70 58 50 38 14 Rated Load Speed(rpm) 1200 400 210 120 80 60 48 40 30 12 Load Torque(Kg.cm) 0.015 0.05 0.07 0.15 0.2 0.3 0.4 0.45 0.5 0.5 5.0V No-load Speed(rpm) 1450 470 285 145 95 70 58 50 38 14 Rated Load Speed(rpm) 1200 400 240 120 80 60 48 40 30 12 Load Torque(Kg.cm) 0.15 0.05 0.07 0.15 0.2 0.3 0.4 0.45 0.5 1.0

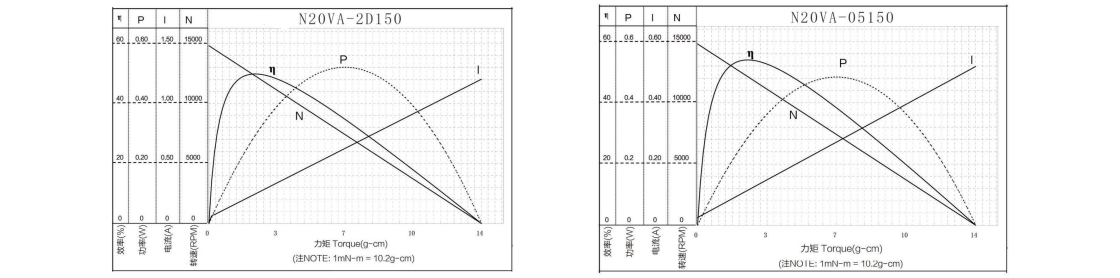

Motor Technical Data
Motor model Rated Voltage No-load Rated Stall Speed Currnet Speed Torque Current Power Torque Current VDC r / min mA r / min g.cm mA W g,.cm A N20VA-2D150 2.4 14800 60 12100 2.5 260 0.31 14 1.20 N20VA-05150 5.0 14800 30 12000 2.5 120 0.31 13 0.60

The Customizable Parts Iinclude

• Gearbox Parameters: Gear ratio, number of stages, gearbox length, etc.
• Motor Performance: Rated voltage, no-load speed, rated speed, no-load current, rated current, stall current, torque, etc.
• Output Shaft Shape and Size: Customizable output shaft shape and size according to the specific needs of the customer.
• Mounting Method: Different mounting methods and mounting hole positions can be customized according to the customer's application scenario.
• Protection Level: The motor's protection level (such as IP rating) can be customized to enhance water resistance, dust resistance, and impact resistance.
• Torque Limiter: A torque limiting function can be added to protect the motor and load in the event of overload.
• Other: Customization is available based on customer requirements.
