Module |
0.15 |
|||
|
Rated torque |
D.5 kg,cn nnx |
|||
|
Miax noncntory tolerance torque |
1.0 kg,cm max |
|||
|
Reduction ratio |
1/10 |
1/20、1/30 1/50、1/63 1/100 |
1/110、1/150 1/210、1/250 1/298、1/380 |
1/700 1/1000 |
|
Nunber of gear stages |
2 |
4 |
5 |
7 |
|

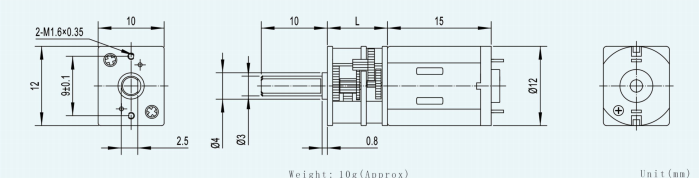

L(mm) |
9.0 |
12.5 |
||
|
Reduction ratio |
10 |
30 |
50 |
100 |
150 |
210 |
250 |
298 |
380 |
1000 |
|
|
2.4V |
No-load spoed(rrm) |
1450 |
470 |
265 |
145 |
96 |
70 |
58 |
50 |
38 |
14 |
|
|
Rated speed(rm) |
1200 |
40K0 |
240 |
120 |
8D |
60 |
48 |
40 |
30 |
12 |
|
|
RaTed torque(kg.cm) |
0.015 |
0.05 |
0.07 |
0.15 |
0.2 |
0.3 |
0.4 |
0.45 |
0.5 |
0.5 |
|
5.0V |
No-1oad speed(rpn) |
1450 |
470 |
265 |
145 |
95 |
70 |
58 |
50 |
38 |
14 |
|
|
Rated speed(rpm) |
1200 |
400 |
240 |
120 |
80 |
60 |
热 |
40 |
30 |
12 |
|
|
Rnted torque(kg.cm) |
0.015 |
0.05 |
0.07 |
0.15 |
0.2 |
0.3 |
0.4 |
0.45 |
01.5 |
1.0 |
Motor Technica Data
|
Motor model |
Rated voltage |
No-load |
Rated |
Stall |
|||||
|
Speed |
Crrent |
Speed |
Torque |
Current |
Rwer |
Torgue |
Current |
||
|
VDC |
r/min |
mA |
r/min |
g.cm |
mA |
W |
B.cm |
A |
|
|

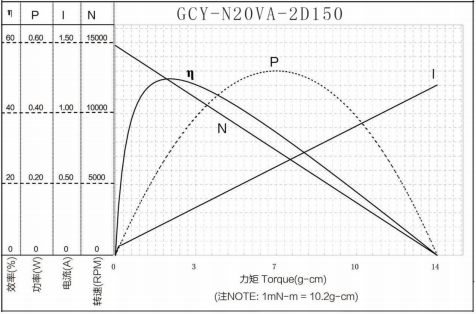

GCY-N20VA-2D150 |
2.4 |
14800 |
60 |
12100 |
2.5 |
260 |
0.31 |
14 |
1.20 |
|

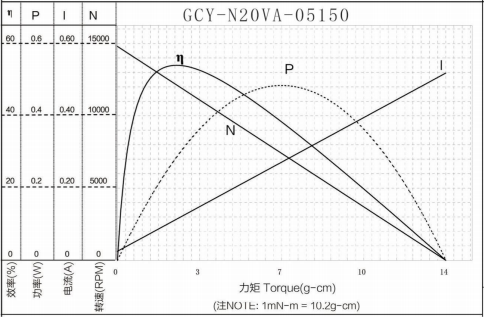

GCY-N20VA-05150 |
5.0 |
14800 |
30 |
12000 |
2.5 |
120 |
0.31 |
13 |
0.60 |
